Submerged aerated filter (SAF) sewage treatment plants
Utilising proven submerged aerated filter (SAF) technology, the Rewatec SAF range of sewage treatment plants provide the ideal solution for larger applications.
Highly efficient performance
Highly efficient performance
Pre-engineered or bespoke designs
Pre-engineered or bespoke designs
Low carbon footprint
Low carbon footprint
Manage seasonal fluctuations
Manage seasonal fluctuations

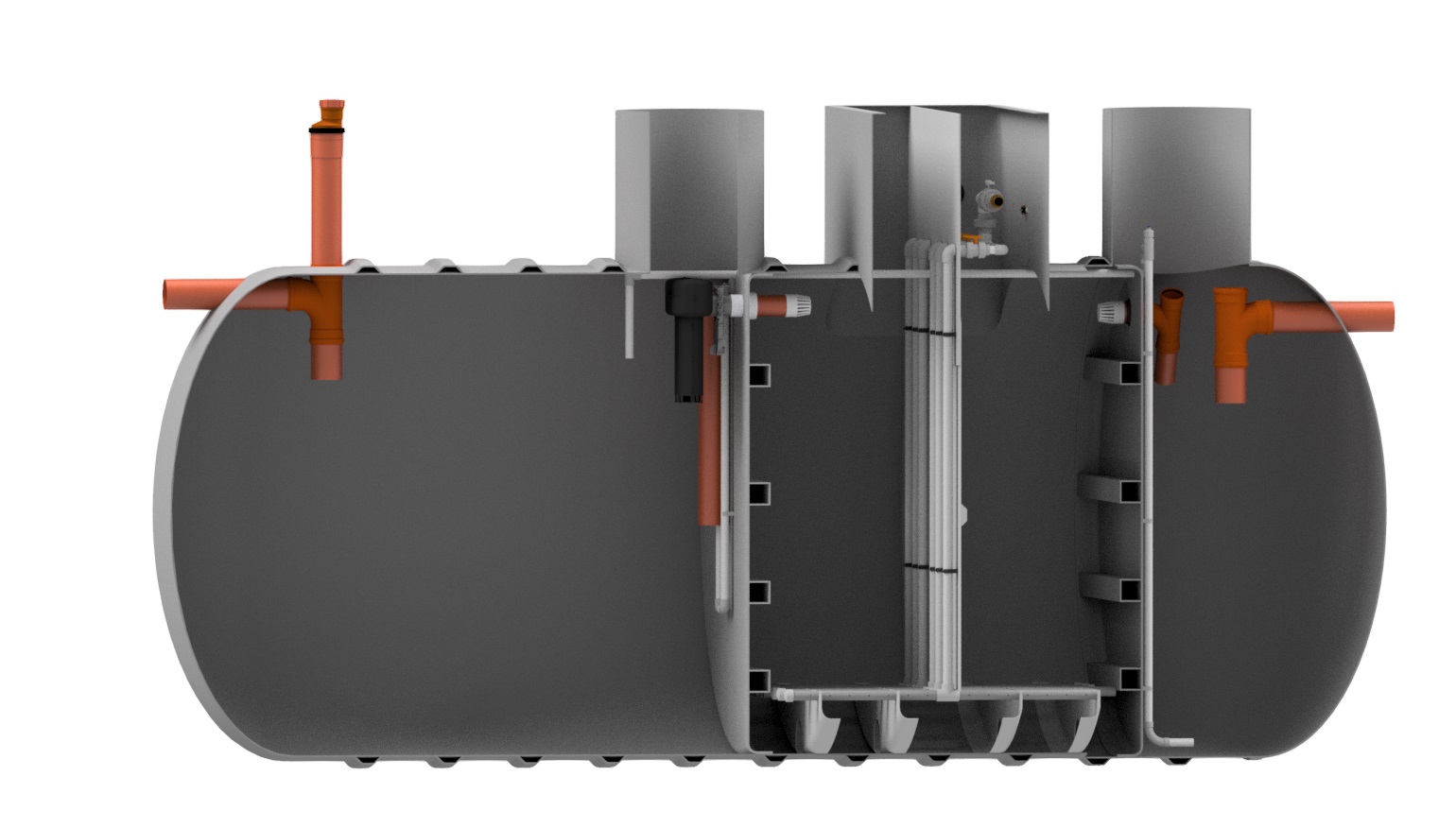

What is a submerged aerated filter?
The Rewatec submerged aerated filter (SAF) is a robust, GRP, wastewater treatment plant that combines energy efficiency with a low carbon footprint.
Uniquely engineered to cater for a population of 25 to 600+ PE, the Rewatec SAF is perfect for both small and large scale projects where access to the main drainage system is unavailable, or if treatment in situ is required.
By using biological treatment within the SAF, a range of on-site applications can be achieved. This includes a final effluent quality of 20mg/L BOD, 30mg/L SS and up to 5mg/L NH4-N. It can also achieve up to 62% total nitrogen (TN) removal and up to 50% total phosphorus (TP) removal. Dosing options are also available to improve both TN and TP removal.
Example applications
- residential developments
- hotels and inns
- leisure facilities
- camping and caravan sites
- restaurants and cafes
- schools
- office buildings
- industrial sites
Adaptable to suit your needs
The Rewatec SAF range of sewage treatment plants can be tailored to meet your exact needs.
Size variations
Our range of Rewatec SAF plants can be configured to suit your site and population requirements. This includes single tank, two tank and three tank systems, as well as bespoke schemes for larger projects.
Rewatec kiosks
All Rewatec SAF plants are supplied with a robust kiosk to house the electronic and mechanical componentry required to operate the system. Key features include:
A optional variable speed blower
- reduces energy usage
- reduces energy costs
- reduces your businesses carbon footprint
A single of three phase blower
- single phase is standard on all tanks up to 125 PE. Three phase is optional
- three phase is standard on all tanks from 150 PE and above
An optional dissolved oxygen probe
- automatically reduces the air supply (and therefore power) if the plants occupancy is reduced
- maximises energy efficiency
- reduces ongoing running costs
How do our Rewatec SAF systems work?
The Rewatec SAF sewage treatment plants form three treatment stages: primary settlement, biological treatment (biological and aeration zone) and final settlement. Flow through all of the treatment stages from inlet to outlet occurs via gravity, integral airlifts or via pumps.
Primary settlement tank
In typical installations, wastewater first flows into a primary settlement tank, allowing liquids to separate from suspended solids. The primary settlement tank is also designed to accommodate flow and load fluctuations.
Biological and aeration zone
Inside the Rewatec SAF, micro-organisms grow on floating biofilm media. They feed on organic wastewater pollutants, producing effluent composed of biomass particles and treated wastewater.
Our plastic biofilm media are specifically shaped to increase the surface area on which micro-organisms grow. This maximises their ability to treat wastewater and helps to minimise the size of the reactor (and therefore overall footprint of the plant).
A diffuser system feeds oxygen from blowers in the kiosk to promote the growth of the biomass. Bubbles from the aeration continuously mix the contents of the Rewatec SAF to ensure optimal contact between wastewater and micro-organisms, improving their ability to remove wastewater pollutants (such as ammonia or organic matter). To optimise efficiency, all of our SAF products come with a steel painted kiosk as standard.
Final settlement tank
After treatment, wastewater flows into the final settlement tank. Solids accumulate at the bottom of tank before being redirected to the primary settling area by a re-circulation pump (enabling partial nutrients removal). The treated wastewater (final effluent) is subsequently discharged from the SAF via the outlet pipe.
Rewatec SAF servicing and maintenance
Routine maintenance and servicing of the Rewatec SAF is recommended to help preserve the lifespan of the system. If the tank is well maintained, the lifecycle of the product can exceed 90 years (i.e. the same as the GRP material).
You can find out more information about our personalised sewage treatment plant maintenance and servicing packages here.
We stand by our products
For over 50 years, we have proudly developed sustainable and long-lasting products that make a real difference for our customers, our professional partners, and, above all, our planet.
Our experience in the industry allows us to give you a complete 25 year warranty for our Rewatec SAF sewage treatment plants and a 12 month warranty for our kiosks.
Visit our office
At Premier Tech we strive to fully meet the requirements of our professional partners. If you require product functionality guidance or more detailed information for installations, we can provide a solution to meet your needs.
Submerged aerated filter guides and manuals
Brochures
Manuals and guides
Technical information
Designed, manufactured and tested in accordance with EN12566-3 for plants below 50PE, EN12255 for plants above 50PE and the EPA, the Rewatec SAF is capable of meeting strict effluent standards that exceed Irish environmental discharge requirements, for a range of on-site applications that don’t have access to the main sewage network.
Available products
We offer a complete range of Rewatec SAF products to meet your needs. From 25PE to 600+PE, wherever your site, whatever the regulations, we have the right product to transform any challenge into a tailor-made solution.
- Single tank solution for 25-300 people
- Modular systems for 25-600 people
- Above or below ground installation
- Low carbon footprint
- Adaptable to manage seasonal flows/loads
Our team of experts can meticulously design, model, engineer and manufacture a bespoke SAF that is tailored towards your sites specific requirements.
- strict effluent consents
- unique usage or operational requirements
- integrated multi-tank systems
This product is no longer available
The Rewatec SAF treatment plant has been discontinued in Ireland, but we have other solutions available. Reach out to our team today for assistance for your upcoming project.
